TONGDA TDB-120F 120L Blue Barrel Drum Extrusion Blowing Machinery
Plastic Medical Bed Board Making Blow Molding Machine
Product Description
Our TDB-120F model extrusion blow molding machine is with wide
applications. Not only suitable for producing plastic big barrel,
open top containers, such as 50L-120L open top single ring chemical
drums, also are suitable for extrusion molding diffent usage

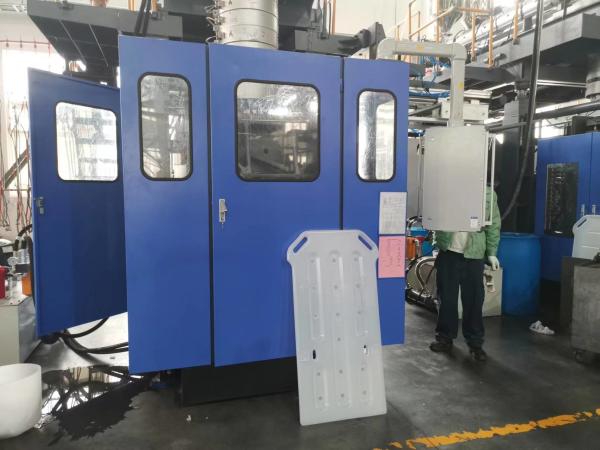

plastic hollow products, such as medical bed board, hollow rescue
stretcher, plastic female mannequin half body and full body, table sheet, desk
board, etc.
Equipped with servo motor not only for hydraulic system, also the
extruder, so it will save 10-30% energy.
Our efficient plasticizing mixing screw, which ensures the plastic
is fully and evenly plasticized, then improve product surface
quality and effectively prevent screw temperature rise.
Technical Parameters
| MODEL | Units | TDB-120F | Remarks: we will customize the most suitable machinery according to
your requirements |
| Max. Product volume | L | 120 |
| Output of HDPE | kg/h | 180 |
| Clamping force | kn | 740 |
| Screw diametre | mm | 100 25:1 |
| Screw heating power | kw | 21 |
| Blow pressure | mpa | 0.6 |
| Size of machine | m | 5.8×2.9×4.3 |
Product Details
Electronic control system: Japanese Mitsubishi PLC, HMI operation
screen(Chinese & English), All data settings, changes, search,
monitoring, fault diagnosis and other functions can be achieved on
the touch screen, touchless working principle, durable components.
Hydraulic system: proportional pressure control, equipped with
famous brand hydraulic components, which are stable and reliable.
Excellent flow channel technology and precise machining accuracy,
make the color change and material change more efficient. From dark
to white, normally can be completed within 3hours. Much quicker
than other suppliers. Save cost for you if you need to produce
different color products.
Company Information
Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City,
Fenghuang town Korea Industrial Park. 2 hours away from Shanghai
City by car.
In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been
focusing on the research, development and product application of
extrusion blow molding machines.
Suzhou Tongda Machinery have more than 20,000m2 factory buildings
and other facilicities and a new intelligent manufacturing factory
with 55,000m2 area. The I phase 20,000m2 area factory will be put
into use in June, 2022. And on May 19th, 2022, we just held the II phase intelligent manufacturing base groundbreaking ceremony.
Service Marketing Network
Our Machinery has been keeping good cooperative relationship with
customers since our establishing.
The satisfaction of our customers are the pursuit of every member of
Tongda,The only way we service in the competitive market is to help our customers to full fill their
requirement.
Our Advantages
TONGDATONGDA sales consultant
- We can provide comprehensive and professional Suggestions on
equipment selection.
- Energy consumption calculation and investment income analysis can
be provide
Advantages of TONGDA after-sales team
- Lifetime free service for the machine.
- Quick response all day long.
- Set up domestic service team and international service team.
- Special processing equipment to produce after-sales accessories to
ensure rapid response to user needs.
