200L Double Ring Chemical Hdpe Drum Manufacturing Machines Single Layer

    Buy cheap 200L Double Ring Chemical Hdpe Drum Manufacturing Machines Single Layer from wholesalers

    Buy cheap 200L Double Ring Chemical Hdpe Drum Manufacturing Machines Single Layer from wholesalers
    • Buy cheap 200L Double Ring Chemical Hdpe Drum Manufacturing Machines Single Layer from wholesalers
    • Buy cheap 200L Double Ring Chemical Hdpe Drum Manufacturing Machines Single Layer from wholesalers
    • Buy cheap 200L Double Ring Chemical Hdpe Drum Manufacturing Machines Single Layer from wholesalers
    • Buy cheap 200L Double Ring Chemical Hdpe Drum Manufacturing Machines Single Layer from wholesalers
    • Buy cheap 200L Double Ring Chemical Hdpe Drum Manufacturing Machines Single Layer from wholesalers

    200L Double Ring Chemical Hdpe Drum Manufacturing Machines Single Layer

    Ask Lasest Price
    Brand Name : TONGDA
    Supply Ability : 800sets/year
    Price : $249,999.00/Sets >=1 Sets
    Certification : CE, ISO9001
    Delivery Time : 28 working days
    Payment Terms : T/T, L/C, D/P, West Union
    Model Number : TONGDA TDB250F
    • Product Details
    • Company Profile

    200L Double Ring Chemical Hdpe Drum Manufacturing Machines Single Layer

    TONGDA TDB250F Chemical Drum 200l Double Ring Hdpe Barrel Making Machine

    Product description

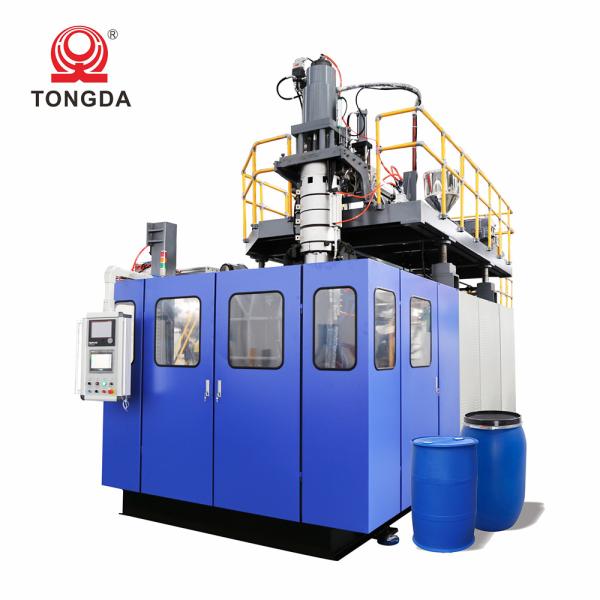

    This machine is specialized in making 200~220L single or double ring drum & open-top drum.This is single layer and equipped with servo motor.The main parts of this machine are designed and manufactured by ourselves. We do the independent R&D and inspection. If you have other special requirements, we can provide customized services for you.
    200L Double Ring Chemical Hdpe Drum Manufacturing Machines Single Layer

    Technical parameters


    MODELUnitsTDB-250F

    Remarks: If you have other special requirements,we can provide customized services for you.

    Max. Product volumeL250
    Output of HDPEkg/h380
    Clamping forcekn770
    Screw diametremm120
    Screw heating powerkw53
    Blow pressurempa0.6
    Size of machinem7.8*2.9*5.4

    Product details


    200L Double Ring Chemical Hdpe Drum Manufacturing Machines Single Layer


    Clamping structure, we use 3 plate type design, with more stable clamping function

    Separate oil source, for parison controller, to ensure better and more stable reaction speed.


    200L Double Ring Chemical Hdpe Drum Manufacturing Machines Single Layer


    Hydraulic system: proportional pressure control, equipped with famous brand hydraulic components, which are stable and reliable.

    Company information

    200L Double Ring Chemical Hdpe Drum Manufacturing Machines Single Layer


    200L Double Ring Chemical Hdpe Drum Manufacturing Machines Single Layer


    Service network

    200L Double Ring Chemical Hdpe Drum Manufacturing Machines Single Layer


    Our company have a service team with 35 qualified engineers can fly overseas to do the installation and commissioning.


    200L Double Ring Chemical Hdpe Drum Manufacturing Machines Single Layer


    Our Machinery has been keeping good cooperative relationship with customers since our establishing.

    The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.


    FAQ

    Advantages of TONGDA tech teams
    1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
    2. Customize equipment models according to customer product characteristics.
    3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
    4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
    5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


    Advantages of TONGDA after-sales team
    1. Lifetime free service for the machine.
    2. Quick response all day long.
    3. Set up domestic service team and international service team.
    4. Technicians also master the debugging and maintenance of auxiliary equipment.
    5. A free 2-day training course will be provided to customers every year.
    6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.


    Q: How big is your company?
    A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.
